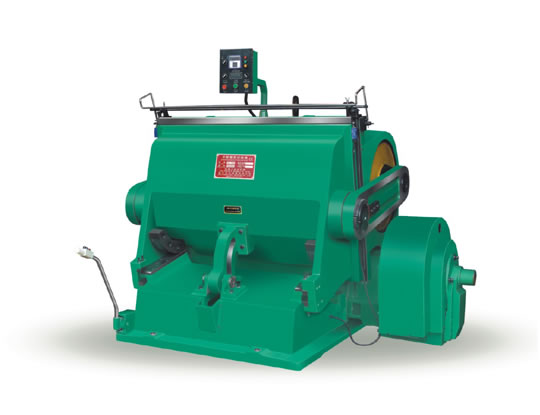

ML-1400, 1300,1100 Creasing Machine
MAJOR CONSTRUCTION FEATURES
* High strength due to one piece casting by using top quality materials for machine body.
* Smooth running,big pressure and low noise are obviously remarked as 4-step helical gear machanism is adopted.
* Single plate electromagnetic clutch is sensitive subreliable.
* Operational alititude is reasonably arranged,Moving-bed opens to its optimum.
* Electical system is designed in comformity with IEC standard.
* Single,continuous operation and opening dwell.range is adjustable.
* Safty system is really reliable Concentrater iubricating system.
|
Model
|
ML1400
|
ML1300
|
ML1100
|
PYQ203C
|
PYQ401C
|
|
Inner chasesize
|
1400mm×1000mm
|
1300mm×920mm
|
1100mm×800mm
|
930mm×670mm
|
720mm×510mm
|
|
Speed
|
20±2stockes/min
|
20±2stockes/min
|
20±2stockes/min
|
20±3stockes/min
|
25stockes/min
|
|
Max.rule length
|
40m
|
40m
|
32m
|
< 25m
|
< 15m
|
|
Motor power
|
5.5kw
|
5.5kw
|
4kw
|
4kw
|
2.2kw
|
|
Net weight
|
6500kg
|
6500kg
|
4500kg
|
3000kg
|
2000kg
|
|
Overall dimensions
|
1800×2220×1650mm
|
1800×2120×1650mm
|
1800×1900×1480mm
|
1780×1590×1450mm
|
1300×1300×1700mm
|
